Renogy Rover Li 30A 12V/24V MPPT Solar Charge Controller with Bluetooth Module

The Renogy Rover Li 30A MPPT Solar Charge Controller is a high-efficiency charge controller designed to optimize the charging of your batteries using solar panels. It features Maximum Power Point Tracking (MPPT) technology, which ensures up to 99% tracking efficiency, allowing for maximum energy capture from your solar panels. This controller is compatible with 12V and 24V systems and can automatically detect the system voltage for non-lithium battery types.

Key Features

MPPT Technology:
- Advanced MPPT with up to 99% tracking efficiency and 98% peak conversion efficiency, ensuring maximum energy extraction from solar panels even in varying light conditions.
- Supports a wide range of battery types including Sealed, Gel, Flooded, and Lithium (manual setting required for 24V Lithium batteries).

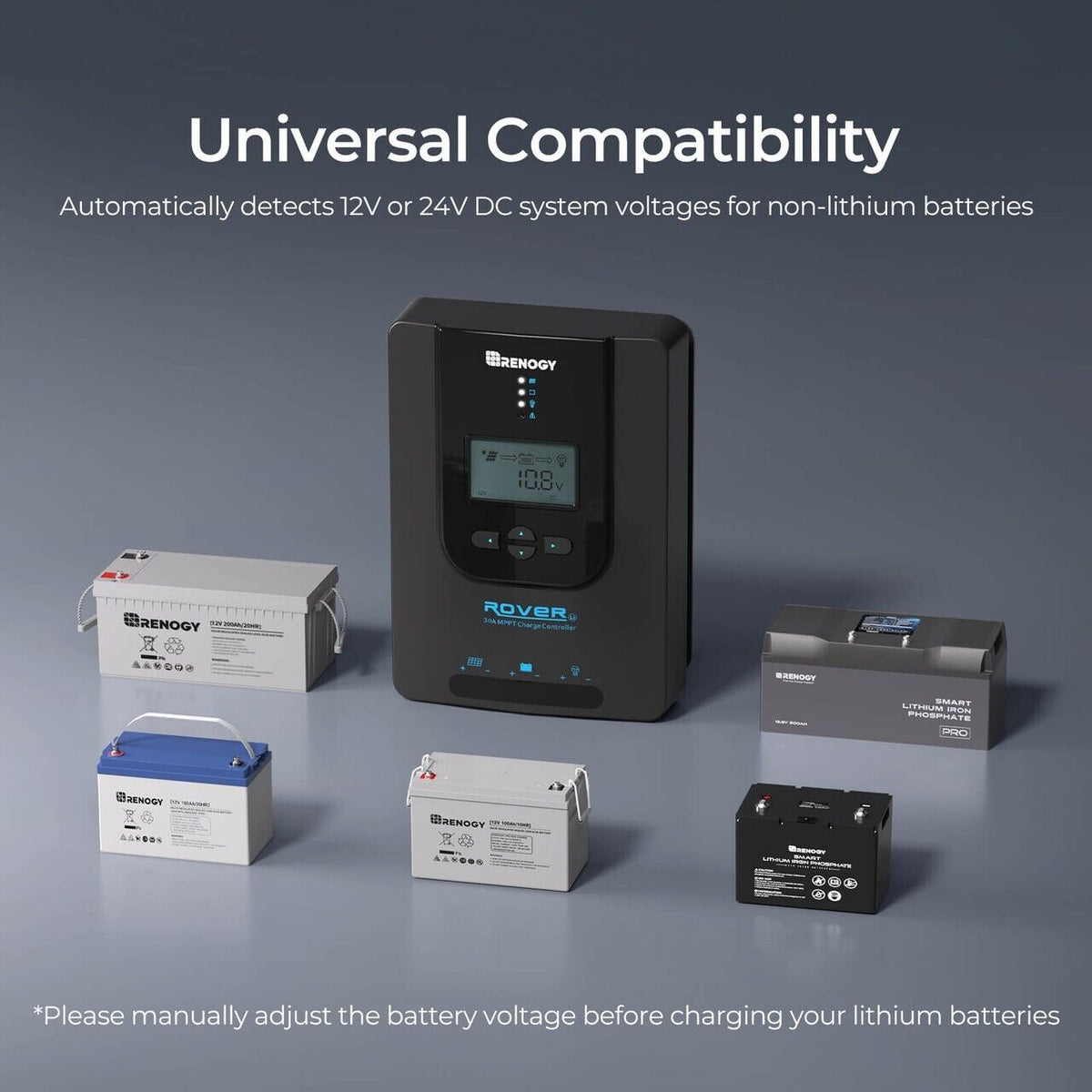

Automatic Voltage Detection:
- Automatically detects 12V/24V systems for non-lithium battery types, simplifying setup and operation.

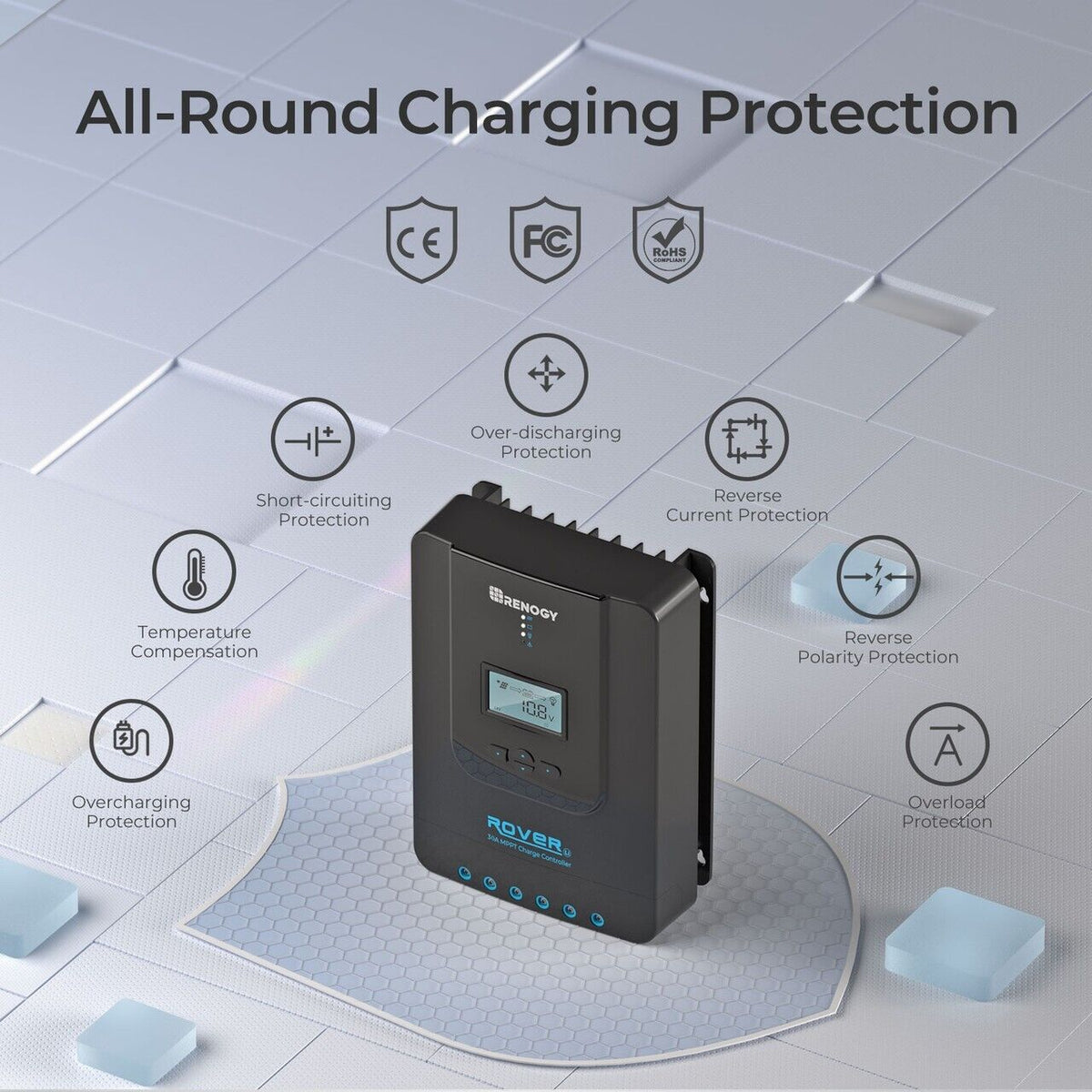

Comprehensive Protections:
- Includes overload protection, short circuit protection, anti-reverse protection, over-discharging protection, and overcharge protection, ensuring the safety and longevity of your system.
Bluetooth Module (BT-1):
- Allows for wireless monitoring and control via the Renogy DC Home app. This feature provides real-time data and the ability to make parameter changes remotely.
Temperature Monitoring and Compensation:
- Equipped with a temperature sensor to adjust charging parameters based on battery temperature, providing optimal charging conditions.

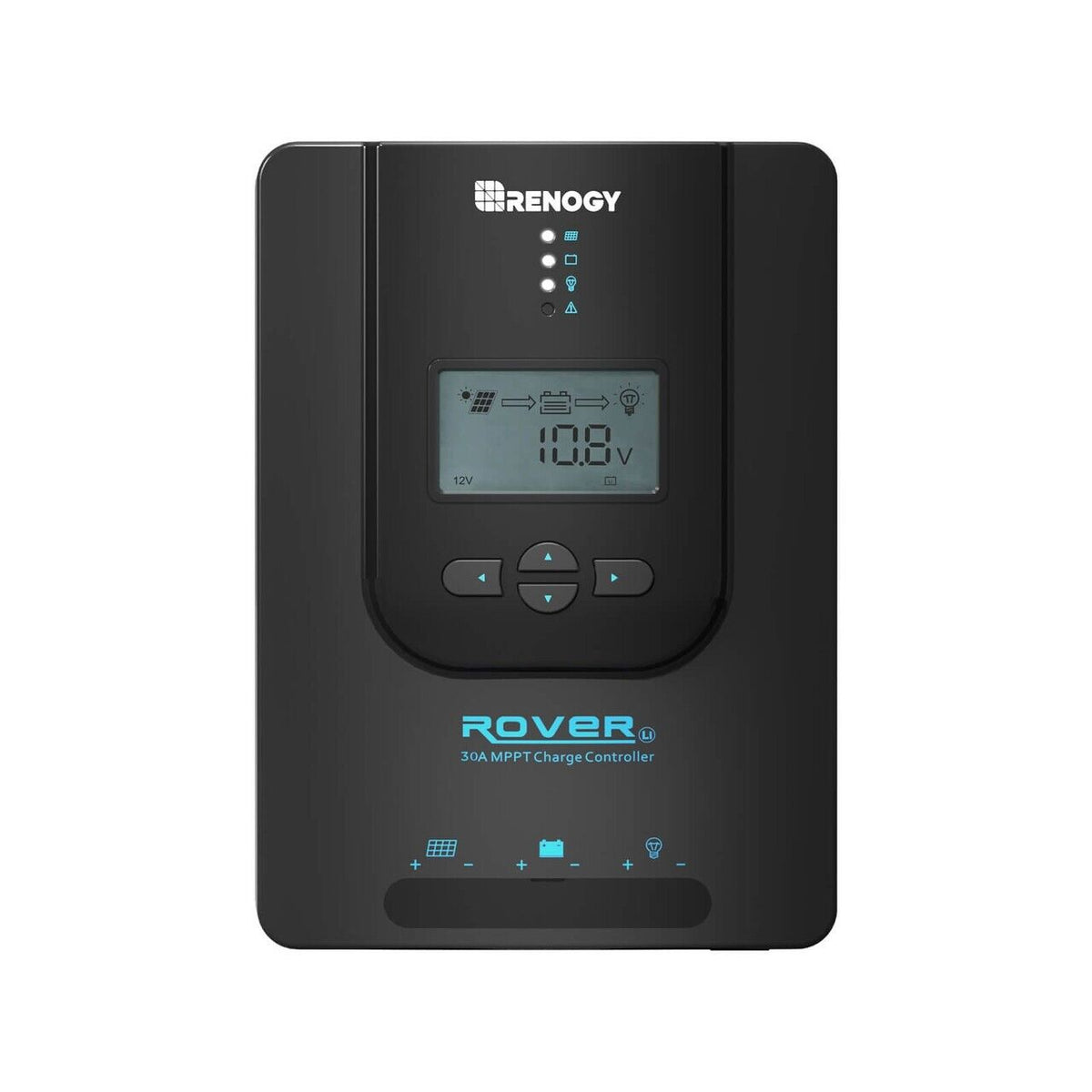

User-Friendly Interface:
- Features an LCD display for easy monitoring of system status and parameters, as well as LED indicators for quick status checks.

Specifications

Nominal System Voltage: 12V/24V (Auto-detect for non-lithium batteries)
Rated Charge Current: 30A
Max PV Input Voltage: 100 VDC
Max PV Input Power: 12V/460W, 24V/800W
Power Consumption: <100mA/12V; <58mA/24V
Dimensions: 8.27 x 5.94 x 2.34 inches (210 x 151 x 59.5 mm)
Weight: 3.08 lbs (1.4 kg)
Max Terminal Size: 8 AWG (10mm²)
Operating Temperature Range: -35°C to 45°C (-31°F to 113°F)
Storage Temperature Range: -35°C to 75°C (-31°F to 167°F)
Protection Level: IP32
Communication Protocol: RS232
Certifications: CE, FCC Class B Part 15 Compliant

Bluetooth Module (BT-1) Specifications

Communication Range: ≤82ft (25m)
Cable Length: 16.4 ft (5.00m)
Dimensions: 2.65 x 1.38 x 0.55 inches (67.3 x 35 x 14 mm)
Weight: 4.58 oz (130g)
Operating Temperature: -4°F to 185°F (-20°C to 85°C)
Compatible App: Renogy DC Home App available on iOS and Android

Additional Information

Installation and Maintenance:
- The controller is designed for easy installation and maintenance, with included mounting brackets and an RS232 communication port for the Bluetooth module.
- It includes a detailed manual and an installation video guide to assist with setup and configuration.
Warranty:
- The charge controller comes with a 2-year material and workmanship warranty, and the Bluetooth module has a 1-year warranty.

The Renogy Rover Li 30A MPPT Solar Charge Controller is ideal for a variety of applications, including RVs, boats, and off-grid solar systems, providing efficient and reliable battery charging while ensuring system protection and longevity.
